G-HOP: Generative Hand-Object Prior
for Interaction Reconstruction and Grasp Synthesis

Fast Foward Links:

Generative Hand-Object Prior Reconstructing Interaction Clips Synthesizing Plausible Human Grasps

Note for viewing the project website

Intearctive 3D meshes can only be viewed when hosted on a server due to CORS security in browsers. You can either host it the locally (e.g. by a simple python server) or view the identical website hosted on https://gen-hop.github.io .

Generative Hand-Object Prior

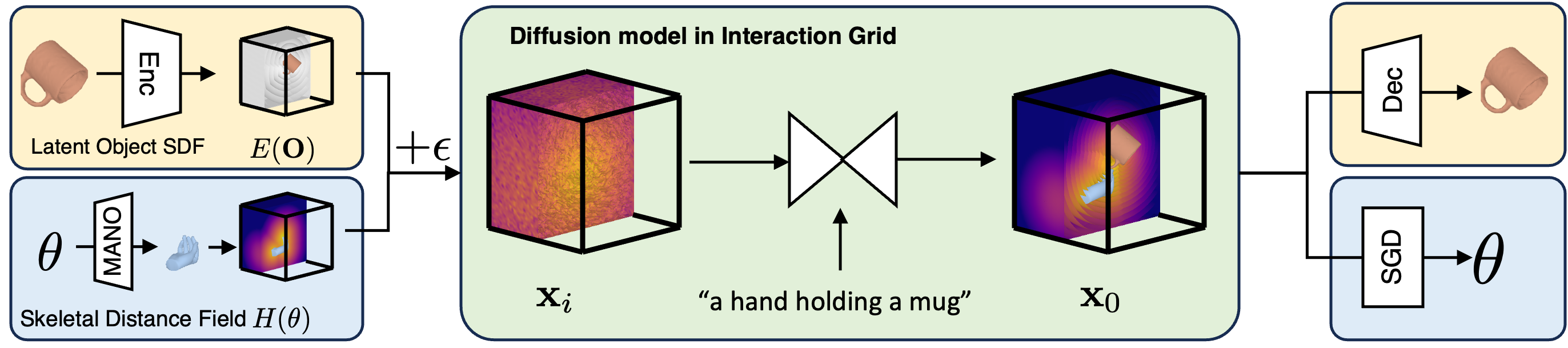

Method Overview

Hand-object interactions are represented as interaction grids within the diffusion model. This interaction grid concatenates the (latent) signed distance field for object and skeletal distance field for the hand. Given a noisy interaction grid and a text prompt, our diffusion model predicts a denoised grid. To extract 3D shape of HOI from the interaction grid, we use decoder to decode object latent code and run gradient descent on hand field to extract hand pose parameters.

HOI Generations

InputOutput 0Output 1Output 2Output 3Output 4
power drill
spray
plate
wine glass
More generations.

Reconstructing Interaction Clips

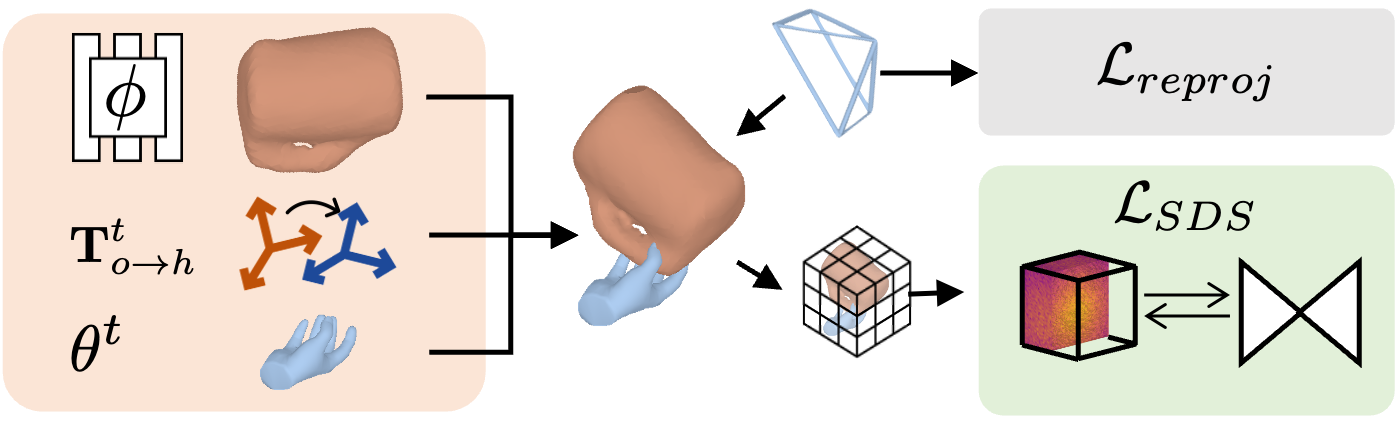

Prior-Guided Reconstruction

We parameterize HOI scene as object implicit field, hand pose, and their relative transformation (left). The scene parameters are optimized with respect to the SDS loss on extracted interaction grid and reprojection loss (right).

Comparison with Baselines

We compare with three template-free baselines: DiffHOI(Ye et al., ICCV23), iHOI (Ye et al.,CVPR 22) and HHOR(Huang et al., SIGGRAPHA 22). In contrast to G-HOP (ours), DiffHOI guides reconstruction with hand-conditioned image-based prior and its reconstructed shapes are coarse; iHOI makes per-frame prediction and it's not temporally-consistent; HHOR does not use any data-driven priors and it struggles to hallucinate unobserved area.
In each of the quadruplet, we visualize reconstruction of HOI in the image frame (top left), reconstruction from a novel view (top right). We also visualize reconstruction of HOI at the middle time step (bottom left), and reconstruction of the rigid object over the sequence (bottom right). Note that objects reconstructed by iHOI are visualized along time since it makes per-frame predictions.
Baseline comparisons and ablation study on HOI4D.
More in-the-wild clips.

Synthesizing Plausible Human Grasps

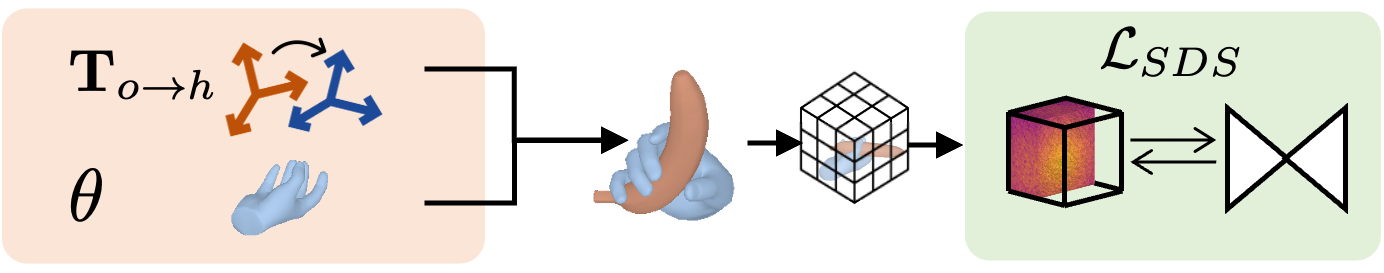

Prior-Guided Grasp Synthesis

We parameterize human grasps via hand articulation parameters and the relative hand-object transformation (left). These are optimized with respect to SDS loss by converting grasp (and known shape) to interaction grid (right).

Comparison with Baselines

We compare with a baseline GraspTTA (Jiang et al, ICCV 21) and ground truth annotations (GT) on HO3D. In contrast to G-HOP (ours), GraspTTA synthesizes grasps that use more finger tip rather than palm region; GT are plausible and contains reaching out motion as it comes from a video sequences. Note that grasp generation is multi-modal, and geenration can be different from GT.
We visualize the synthesized grasps by each methods.
Input ObjectGTGraspTTAG-HOP
Comparisons on ObMan and HO3D.
More diverse grasp generations by our method: link.
